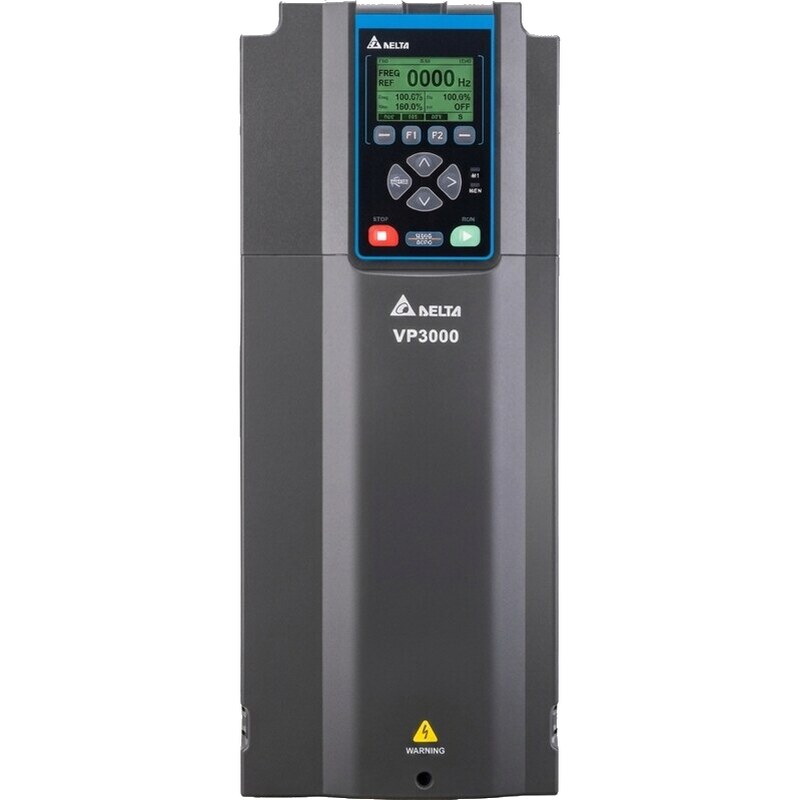

Image for representation purposes only. Actual product may vary in appearance or packaging.
Delta VP3000 Series VFD (3-Phase Input)
Delta VFD025VP43BSTCA VP3000 Series 11kW VFD
Model No: VFD025VP43BSTCA
460V 3-Phase input, 11KW/15HP, 3-Phase output.
+ 18% GST applicable
The Delta VFD025VP43BSTCA Variable Frequency Drive (VFD / AC Drive) is part of the VP3000 Series VFD (3-Phase Input), designed for reliable motor speed and torque control in Indian industrial applications.
460V 3-Phase input, 11KW/15HP, 3-Phase output..
This drive is rated at 11 kW / 15 HP with 460V input, suitable for demanding constant or variable torque applications.
Industrial Supply Syndicate supplies genuine Delta VFDs with GST invoice and Kolkata stock. Contact us to confirm availability and current pricing for the VFD025VP43BSTCA.
For complete electrical specifications, refer to the Specifications tab or the product datasheet.
Why Buy Delta AC Drives from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
40% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD025VP43BSTCA in India
The Delta VFD025VP43BSTCA is available from Industrial Supply Syndicate, Kolkata. Current price: ₹49,698 (excluding 18% GST). We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Power Output
| Max. Applicable Motor | 11 kW (15 HP) |
|---|---|
| Continuous Rated Output Current | 25 A |
| Light-Load Current (110%, 1 min/5 min) | 24 A |
| Max. Output Current (2 s start) | 30.8 A |
| Max. Output Frequency | 599 Hz |
Input
| Rated Input Voltage / Freq. | 3-Phase 380–480 V AC (-15% ~ +10%), 50/60 Hz |
|---|---|
| Rated Input Current | 35 A |
| Power Supply Capacity | 28 kVA |
| Displacement Power Factor (cosφ) | 0.98 |
Control
| Control Mode | PWM |
|---|---|
| Control Methods | V/F, SVC, FOC (sensorless), SynRM (sensorless) |
| Motor Types | Induction (IM), Permanent Magnet (PM), SynRM |
| Duty Type | Variable torque (open-loop) |
| Starting Torque | 150%+ at 0.5 Hz |
| Overload Tolerance | 110% rated for 1 min every 5 min |
| Energy Saving | Automatic Energy Saving (AES) |
| Built-in PLC | Yes (20K steps) |
| Drive Efficiency | ~97% |
| Harmonics (lower-harmonic models) | THDi as low as 35% (EN 61000-3-12) |
Communication
| Built-in | Modbus & BACnet MS/TP |
|---|---|
| Optional | Modbus TCP, BACnet IP, EtherNet/IP, PROFIBUS DP, PROFINET, DeviceNet, CANopen |
| Keypad | LED / LCD graphic / LCD with Bluetooth & USB (optional) |
Safety & Build
| Safe Torque Off (STO) | SIL 3 — ISO 13849-1 PL e, EN 61508 SIL 3 |
|---|---|
| Predictive Maintenance (PdM) | Power module, capacitor & cooling-fan life monitoring |
| Conformal Coating | IEC 60721-3-3 class 3C3 |
| Built-in EMC Filter | Available — EN 61800-3 C2 / C3 |
| Over-current / Over-voltage | 195% rated; DC-bus trip > 820 V |
| Certifications | CE, UL, RCM, REACH, RoHS |
Physical
| Frame Size | Frame C |
|---|---|
| Enclosure | Wall-mount (IP20 UL Open Type / UL Type 1) |
| Dimensions W × H (mm) | 152 × 380 |
| Operating Temperature | -20 to +50°C (UL Type 1); up to +60°C (UL Open / chassis) |
| Altitude | 0–1000 m (derate above 1000 m) |
