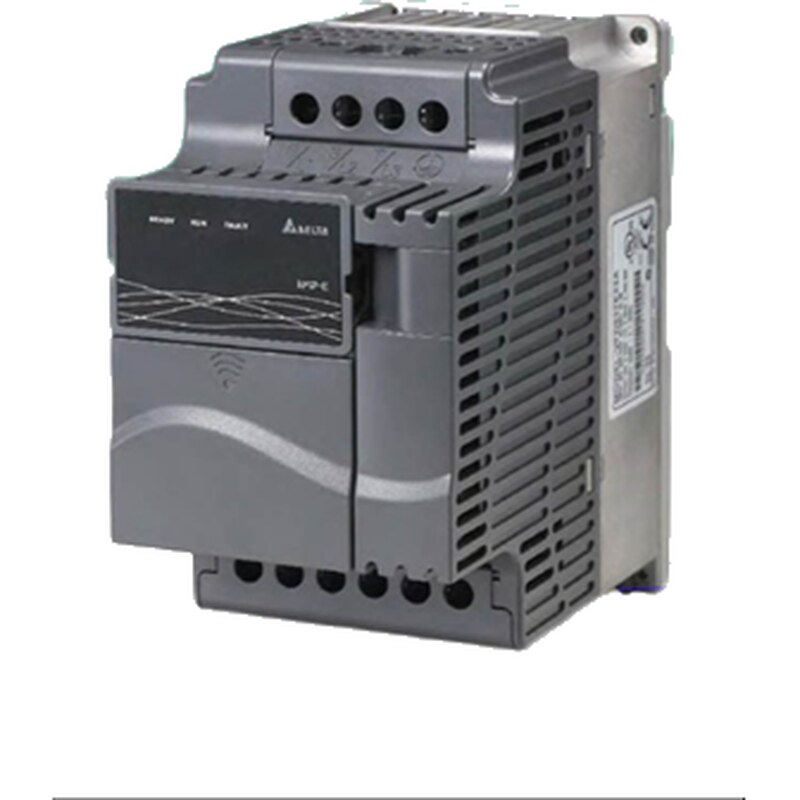

Delta VFD075E43A E Series 7.5kW VFD

The Delta VFD075E43A is a 7.5 kW (10 HP) drive from the VFD-E series of sensorless-vector compact AC drives. Running on a 3-phase 460V supply, it delivers a rated output current of 18 A and is engineered for reliable, space-saving motor control across light-industrial and OEM machines. With a built-in PLC, modular expansion slots and standard MODBUS communication, the VFD075E43A replaces both a small drive and a basic controller in one compact unit.

Key Features

• Sensorless vector & V/F control with up to 150% starting torque at 3.0 Hz
• Built-in PLC for standalone logic without an external controller
• Modular design with optional I/O, relay, PG (encoder) and USB cards
• Standard MODBUS RS-485 communication; optional PROFIBUS, DeviceNet, CANopen
• Wide output range 0.1–599 Hz with 1–15 kHz adjustable carrier frequency
• Complete protection: over-current, over-voltage, overload, short-circuit, PTC motor overheat
• Compact book-style body with DIN-rail mounting and removable cooling fan

Performance & Control

The VFD075E43A uses SPWM sensorless vector and adjustable V/F control to hold speed steady under changing load. Auto torque and auto slip compensation provide up to 150% starting torque at 3.0 Hz, while the 150%-for-1-minute overload rating absorbs sudden load increases. Output frequency is adjustable from 0.1 to 599 Hz with a 1–15 kHz carrier frequency for quiet motor operation, and two independent accel/decel ramps with S-curve smoothing protect the mechanical drivetrain.

Protection & Reliability

Comprehensive protection covers over-voltage, over-current, under-voltage, overload, ground fault, IGBT short-circuit and motor over-temperature (PTC). Over-voltage and over-current stall prevention, momentary power-loss restart and a speed-search restart keep the VFD075E43A running in demanding plant conditions. The IP20 enclosure, removable cooling fan and side-by-side mounting (up to 40 °C) make installation and maintenance straightforward.

Typical Applications

• Conveyors, automatic doors, small elevators and escalators
• Fans, pumps, air compressors and HVAC equipment
• Textile, packaging, woodworking and food-processing machinery
• Grinding, drilling, milling and other small machine tools
• Treadmills, washing machines, centrifuges and mixers

Ideal For

Machine builders and panel integrators who need a dependable 7.5 kW drive with built-in logic, a small footprint and a proven Delta track record. The VFD075E43A is supplied with a GST invoice and pan-India delivery, backed by application and commissioning support.
