Delta C2000 Plus Series VFD (3-Phase Input)

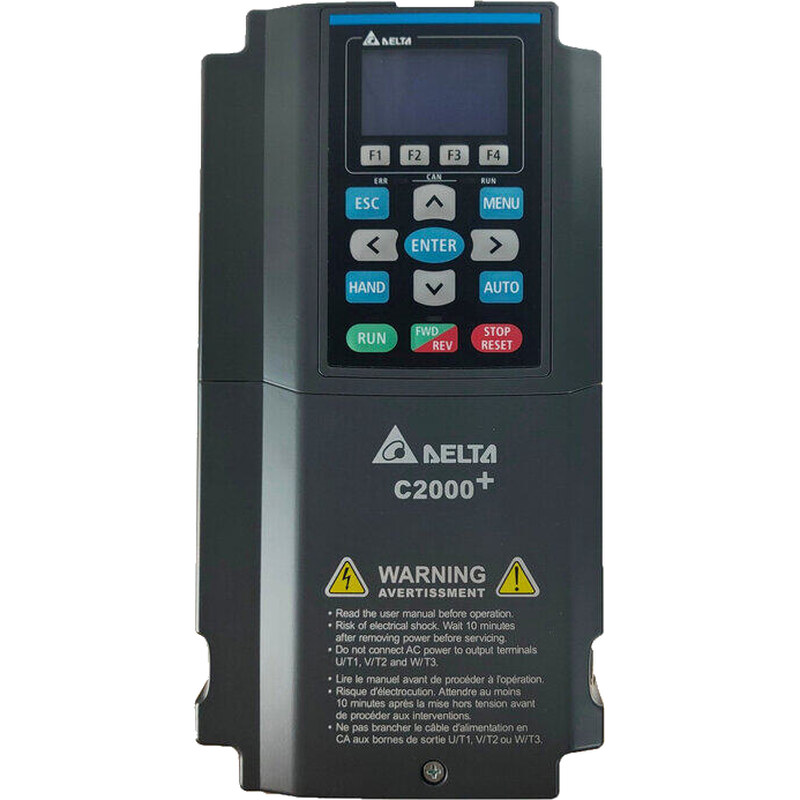

Delta VFD1100C43A-00 C2000 Plus Series 110kW VFD
Model No: VFD1100C43A-00
460V 3-Phase input, 110KW/150HP, 3-Phase output.
+ 18% GST applicable
The Delta VFD1100C43A-00 Variable Frequency Drive (VFD / AC Drive) is part of the C2000 Plus Series VFD (3-Phase Input), designed for reliable motor speed and torque control in Indian industrial applications.
460V 3-Phase input, 110KW/150HP, 3-Phase output..
This drive is rated at 110 kW / 150 HP with 460V input, suitable for demanding constant or variable torque applications.
Industrial Supply Syndicate supplies genuine Delta VFDs with GST invoice and Kolkata stock. Contact us to confirm availability and current pricing for the VFD1100C43A-00.
For complete electrical specifications, refer to the Specifications tab or the product datasheet.
Why Buy Delta AC Drives from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
40% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD1100C43A-00 in India
The Delta VFD1100C43A-00 is available from Industrial Supply Syndicate, Kolkata. Current price: ₹282,990 (excluding 18% GST). We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Output
| Series | Delta C2000 |
|---|---|
| Applicable Motor (Normal Duty) | 110 kW (150 HP) |
| Rated Output Capacity (ND) | 175 kVA |
| Rated Output Current (ND) | 220 A |
| Max. Output Frequency | 0.00–599 Hz (ND), 0.00–300 Hz (HD) |
Input
| Rated Input Voltage/Frequency | 3-phase 380–480V (-15%/+10%), 50/60Hz |
|---|---|
| Rated Input Current (ND) | 207 A |
| Operating Voltage Range | 323–528 VAC |
Control
| Control Method | PWM; V/F, SVC, VF/FOC/TQC/PM (+PG & sensorless) |
|---|---|
| Starting Torque | 150% at 0 Hz (FOC+PG) |
| Overload (Normal Duty) | 120%/1 min, 160%/3 s |
| Overload (Heavy Duty) | 150%/1 min, 180%/3 s |
| Built-in PLC | Yes (10K steps) |
| Motor Types | Induction & permanent-magnet (PM) |
| Safe Stop (STO) | Built-in |
| Communication | MODBUS RS-485; optional CANopen / fieldbus |
General
| Frame Size | E |
|---|---|
| Brake Chopper | Optional brake unit |
| DC Reactor | Built-in DC reactor |
| Conformal Coating | Class 3C3 (IEC 60721-3-3) |
| Efficiency / Power Factor | ≈97.8–98.2% / >0.98 |
| Operating Temperature | -10 to +50°C |
| Certifications | CE, UL, cUL |
