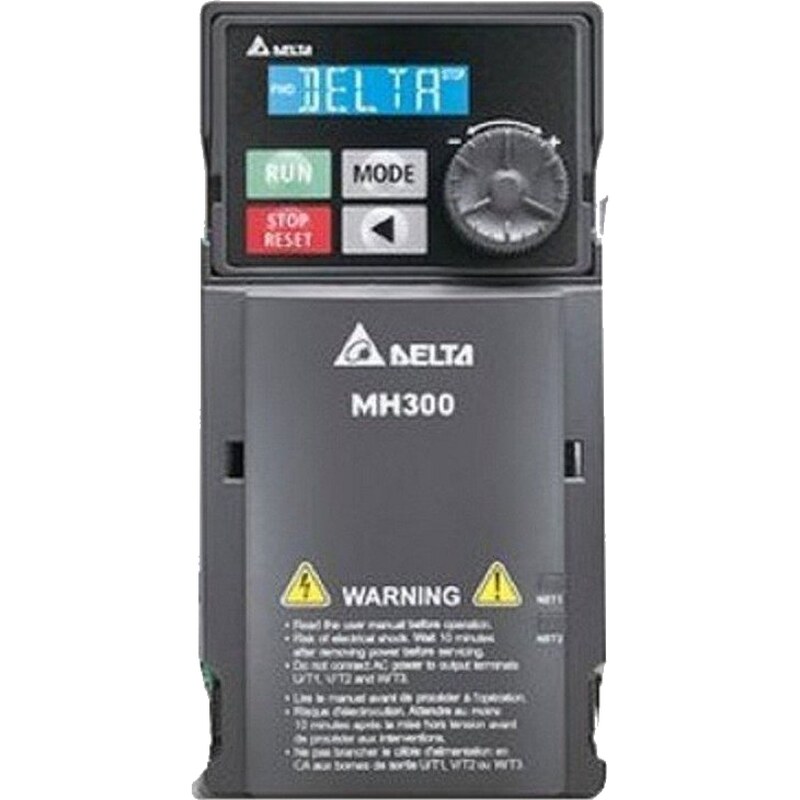

Image for representation purposes only. Actual product may vary in appearance or packaging.
Delta MH300 Series VFD (3-Phase Input)
Delta VFD25AMH43ANSAA MH300 Series 11kW VFD
Model No: VFD25AMH43ANSAA
460V 3-Phase input, 11KW/15HP, 3-Phase output.
+ 18% GST applicable
The Delta VFD25AMH43ANSAA Variable Frequency Drive (VFD / AC Drive) is part of the MH300 Series VFD (3-Phase Input), designed for reliable motor speed and torque control in Indian industrial applications.
460V 3-Phase input, 11KW/15HP, 3-Phase output..
This drive is rated at 11 kW / 15 HP with 460V input, suitable for demanding constant or variable torque applications.
Industrial Supply Syndicate supplies genuine Delta VFDs with GST invoice and Kolkata stock. Contact us to confirm availability and current pricing for the VFD25AMH43ANSAA.
For complete electrical specifications, refer to the Specifications tab or the product datasheet.
Why Buy Delta AC Drives from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
40% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD25AMH43ANSAA in India
The Delta VFD25AMH43ANSAA is available from Industrial Supply Syndicate, Kolkata. Current price: ₹38,712 (excluding 18% GST). We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Power Output
| Max. Applicable Motor | 11 kW (15 HP) |
|---|---|
| Rated Output Current (Heavy Duty) | 25.0 A |
| Rated Output Current (Normal Duty) | 28.0 A |
| Max. Output Frequency | 599 Hz |
| Carrier Frequency | 2–15 kHz (default 4 kHz) |
Input
| Rated Input Voltage / Freq. | 3-Phase 380–480 V AC (-15% ~ +10%), 50/60 Hz |
|---|---|
| Input Voltage Range | 323–528 V |
| Input Frequency Range | 47–63 Hz |
Control
| Control Methods | V/F, SVC, FOC, V/F+PG, FOC+PG, TQC+PG |
|---|---|
| Motor Types | Induction (IM) & Permanent Magnet (IPM/SPM) |
| Starting Torque | Up to 200% (0.5 Hz sensorless / 0 Hz with PG) |
| Speed Range | Up to 1:1000 (FOC+PG) |
| Overload (Normal Duty) | 120% / 60 s; 150% / 3 s |
| Overload (Heavy Duty) | 150% / 60 s; 200% / 3 s |
| Built-in PLC | Yes (5K steps) |
| Tension Control | Built-in (coil-diameter, dual-PID, taper) |
Communication
| Built-in | RS-485 Modbus & CANopen |
|---|---|
| Optional Fieldbus | PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, EtherCAT, PROFINET |
| Option Slots | 2 (PG / I/O / relay / comms / 24 V power) |
Safety & Build
| Safe Torque Off (STO) | Integrated — ISO 13849-1 PL d, EN 61508 SIL 2 |
|---|---|
| Brake Chopper | Built-in |
| DC Reactor | Optional (built-in on largest frames) |
| Conformal Coating | 100% PCB, IEC 60721-3-3 class 3C2 |
| Enclosure / IP Rating | IP20 standard; IP40 available (E-variant) |
| Built-in EMC Filter | Available (F-variant), Class A / C2 |
| Protection | Over-current, over-voltage, over-temp, phase-loss, overload, ground fault |
Physical
| Frame Size | Frame E |
|---|---|
| Dimensions W × H (mm) | 130 × 250 |
| Cooling Method | Fan cooling |
| Operating Temperature | -20 to +50°C (IP20); -20 to +40°C (IP40) |
| Keypad | Removable, with built-in USB port |
| Certifications | CE, RCM, REACH, RoHS, TUV, UL |
