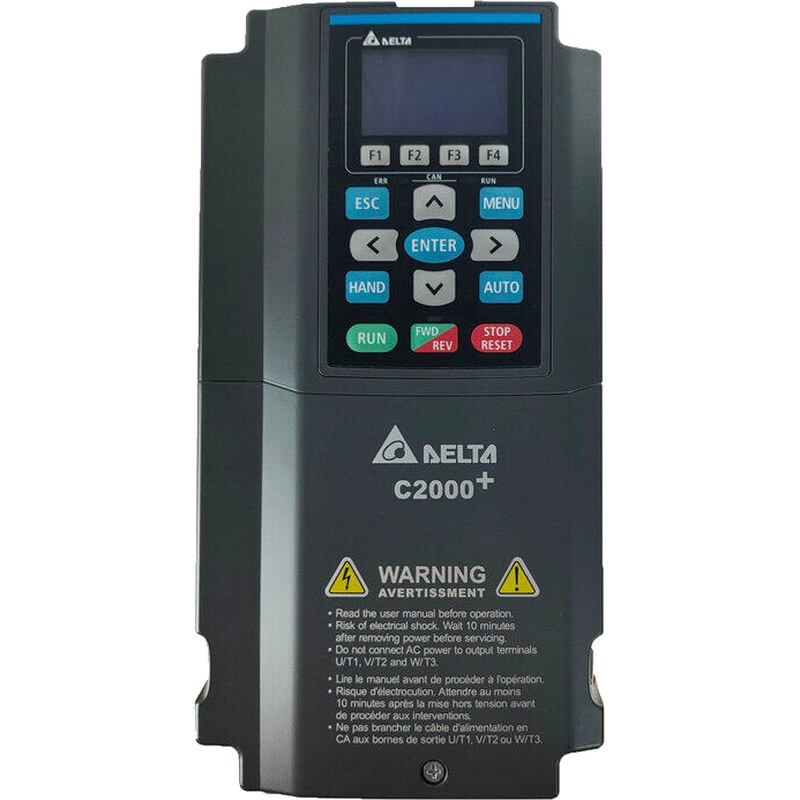

Image for representation purposes only. Actual product may vary in appearance or packaging.
Delta C2000 Plus Series VFD (3-Phase Input)
Delta VFD3150C43A-00 C2000 Plus Series 315kW VFD
Model No: VFD3150C43A-00
460V 3-Phase input, 315KW/425HP, 3-Phase output.
Price on Request
Contact us for current pricing and availability
The Delta VFD3150C43A-00 Variable Frequency Drive (VFD / AC Drive) is part of the C2000 Plus Series VFD (3-Phase Input), designed for reliable motor speed and torque control in Indian industrial applications.
460V 3-Phase input, 315KW/425HP, 3-Phase output..
This drive is rated at 315 kW / 425 HP with 460V input, suitable for demanding constant or variable torque applications.
Industrial Supply Syndicate supplies genuine Delta VFDs with GST invoice and Kolkata stock. Contact us to confirm availability and current pricing for the VFD3150C43A-00.
For complete electrical specifications, refer to the Specifications tab or the product datasheet.
Why Buy Delta AC Drives from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
0% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD3150C43A-00 in India
The Delta VFD3150C43A-00 is available from Industrial Supply Syndicate, Kolkata. We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Output
| Series | Delta C2000 |
|---|---|
| Applicable Motor (Normal Duty) | 315 kW (420 HP) |
| Rated Output Capacity (ND) | 491 kVA |
| Rated Output Current (ND) | 616 A |
| Max. Output Frequency | 0.00–599 Hz (ND), 0.00–300 Hz (HD) |
Input
| Rated Input Voltage/Frequency | 3-phase 380–480V (-15%/+10%), 50/60Hz |
|---|---|
| Rated Input Current (ND) | 555 A |
| Operating Voltage Range | 323–528 VAC |
Control
| Control Method | PWM; V/F, SVC, VF/FOC/TQC/PM (+PG & sensorless) |
|---|---|
| Starting Torque | 150% at 0 Hz (FOC+PG) |
| Overload (Normal Duty) | 120%/1 min, 160%/3 s |
| Overload (Heavy Duty) | 150%/1 min, 180%/3 s |
| Built-in PLC | Yes (10K steps) |
| Motor Types | Induction & permanent-magnet (PM) |
| Safe Stop (STO) | Built-in |
| Communication | MODBUS RS-485; optional CANopen / fieldbus |
General
| Frame Size | H |
|---|---|
| Brake Chopper | Optional brake unit |
| DC Reactor | Built-in DC reactor |
| Conformal Coating | Class 3C3 (IEC 60721-3-3) |
| Efficiency / Power Factor | ≈97.8–98.2% / >0.98 |
| Operating Temperature | -10 to +50°C |
| Certifications | CE, UL, cUL |
