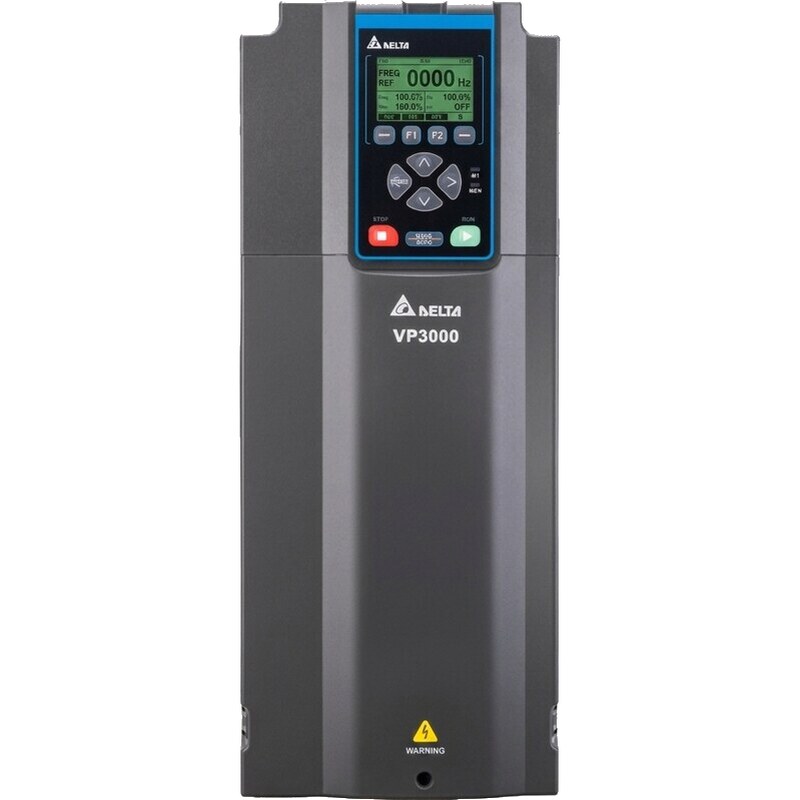

Delta VFD395VP43AFTCA VP3000 Series 200kW VFD

Delta VP3000 200 kW (270 HP) Variable-Torque Standard Drive (460 V 3-Phase)

The Delta VP3000 is an open-loop, variable-torque AC drive purpose-built for the fluid industry — pumps, blowers, fans, HVAC, water supply, wastewater treatment and compressors. This 200 kW (270 HP) model runs on a 3-phase 380–480 V supply with a continuous rated output of 395 A (up to 376 A for 1 minute in every 5). It drives induction (IM), permanent-magnet (PM) and synchronous-reluctance (SynRM) motors, and delivers high efficiency, low harmonics and stable operation in a compact wall-mount package.

Key Features

• High energy efficiency — IM, PM and SynRM control; pairs with Delta's IE5 MSI SynRM motors to raise system efficiency by up to 10%.
• Lower harmonics — lower-harmonic models reach THDi as low as 35% without an external reactor, far better than EN 61000-3-12 (THDi < 48%).
• Predictive Maintenance (PdM) — monitors the service life of power module, capacitor and cooling fan to prevent unexpected downtime.
• Functional safety — integrated Safe Torque Off (STO) to SIL 3 / ISO 13849-1 Cat 3 PL e, saving external safety contactors.
• Built-in PLC (20K steps) — drive-and-control integrated for custom fluid-application logic.
• Enhanced PCB coating to IEC 60721-3-3 class 3C3 for long life in humid, dusty and corrosive (salt-mist, SO₂, H₂S) environments.

Motor Control & Efficiency

VP3000 uses PWM control with V/F, sensorless vector (SVC), sensorless FOC and SynRM control modes, delivering 150%+ starting torque at 0.5 Hz and a maximum output frequency of 599 Hz. Automatic Energy Saving (AES) trims voltage to the actual load to cut consumption on light-running fans and pumps, and this frame J unit is rated at roughly 98% efficiency with a displacement power factor of 0.98.

Fluid-Industry Functions

A built-in multi-pump function (constant-pressure, alternate operation and pump-redundancy modes) controls multiple pumps at regular intervals to balance wear and extend equipment life. Fan Traction Energy Control (TEC) shortens deceleration time by up to 40% on large fans without a braking resistor, protecting the drive from over-voltage. Overload tolerance is 110% of rated current for 1 minute in every 5 minutes — well matched to variable-torque duty.

Compact, Reliable & Easy to Use

Component-optimisation technology cuts volume by an average of 23% (up to 55%) versus the previous generation, freeing panel space. A built-in USB port and DIAStudio software make setup, real-time monitoring and offline parameter copy fast, and the drive supports LED, LCD-graphic and optional Bluetooth/USB keypads.

Communication & Where to Buy

Modbus and BACnet MS/TP are built in; option cards add Modbus TCP, BACnet IP, EtherNet/IP, PROFIBUS DP, PROFINET, DeviceNet and CANopen for building and plant integration. Industrial Supply Syndicate, Kolkata supplies the genuine Delta VP3000 200 kW (270 HP) (460 V 3-phase) with GST invoice and pan-India delivery — standard, EMC-filtered and lower-harmonic variants available. Contact us for the right configuration and best price.
