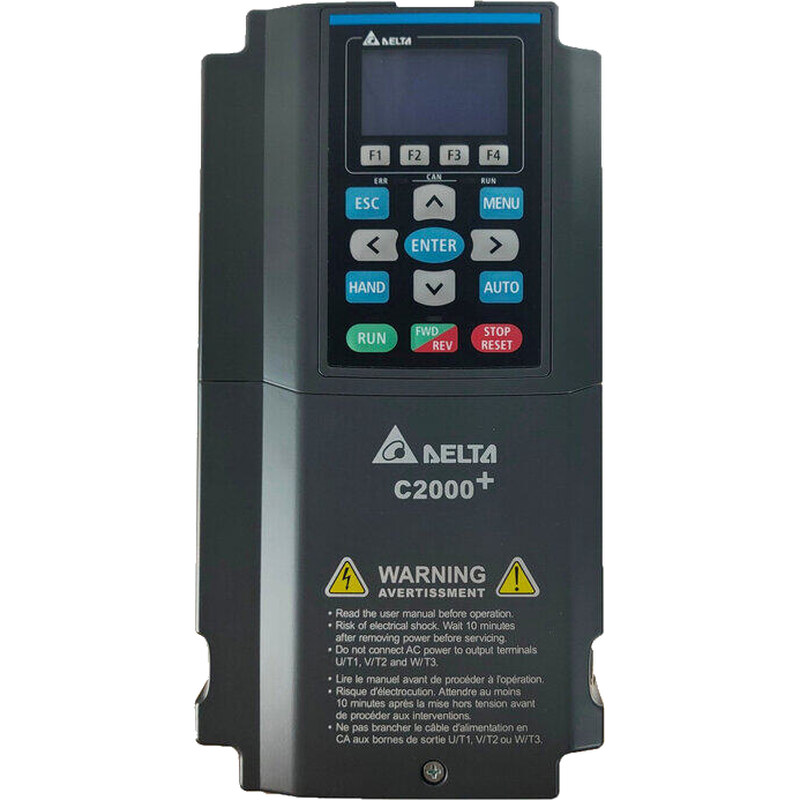

Image for representation purposes only. Actual product may vary in appearance or packaging.
Delta C2000 Plus Series VFD (3-Phase Input)
Delta VFD5000C43A-00 C2000 Plus Series 500kW VFD
Model No: VFD5000C43A-00
460V 3-Phase input, 500KW/680HP, 3-Phase output.
Price on Request
Contact us for current pricing and availability
The Delta VFD5000C43A-00 Variable Frequency Drive (VFD / AC Drive) is part of the C2000 Plus Series VFD (3-Phase Input), designed for reliable motor speed and torque control in Indian industrial applications.
460V 3-Phase input, 500KW/680HP, 3-Phase output..
This drive is rated at 500 kW / 680 HP with 460V input, suitable for demanding constant or variable torque applications.
Industrial Supply Syndicate supplies genuine Delta VFDs with GST invoice and Kolkata stock. Contact us to confirm availability and current pricing for the VFD5000C43A-00.
For complete electrical specifications, refer to the Specifications tab or the product datasheet.
Why Buy Delta AC Drives from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
0% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD5000C43A-00 in India
The Delta VFD5000C43A-00 is available from Industrial Supply Syndicate, Kolkata. We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Input & Output
| Input Supply | 3-Phase 380-480V AC, 50/60 Hz |
|---|---|
| Output (Motor Side) | 3-Phase 0-480V AC |
| Rated Motor Power | 500 kW (680 HP) |
| Rated Output Current (ND) | 866 A (Normal Duty) |
| Rated Output Current (HD) | 815 A (Heavy Duty) |
Control & Performance
| Control Method | V/f, SVC, FOC Sensorless, FOC+PG (with encoder option) |
|---|---|
| Output Frequency Range | 0 – 599 Hz (Normal Duty) |
| Overload — Normal Duty | 120% for 60s; 160% for 3s |
| Overload — Heavy Duty | 150% for 60s; 180% for 3s |
Features & Protection
| Built-in PLC | Yes |
|---|---|
| Built-in PID | Yes (with sleep function) |
| Communication | RS-485 Modbus RTU (RJ45); optional fieldbus cards |
| Braking Chopper | Optional (external) |
| DC Choke | Built-in |
| EMC Filter | Optional |
| Enclosure / IP Rating | IP20 |
Mechanical
| Frame Size | Frame H1 |
|---|
