MH300 Series VFD (3-Phase Input)

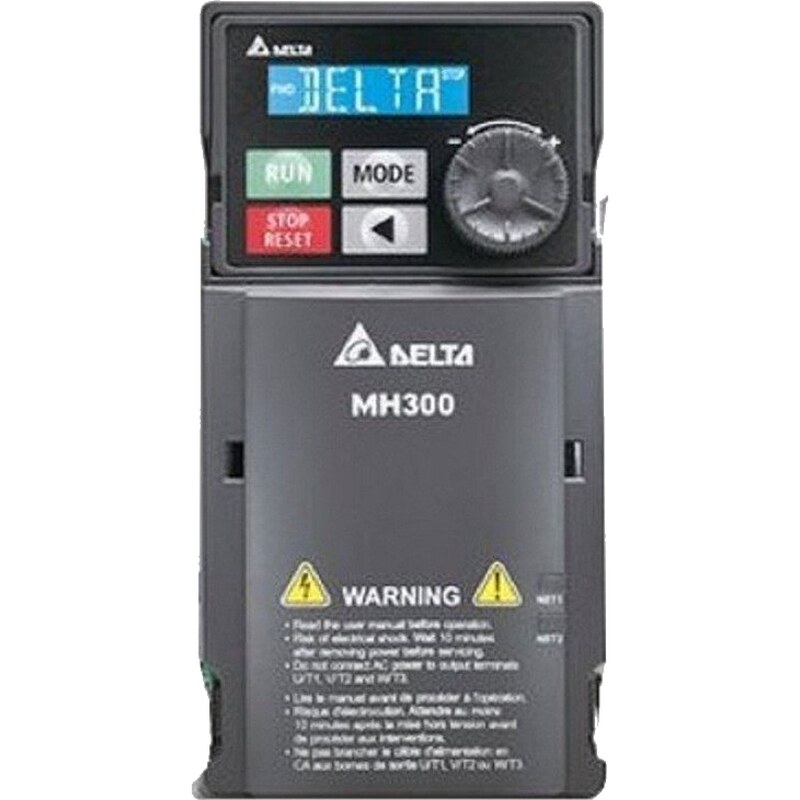

Delta VFD60AMH43ANSAA MH300 Series 30kW VFD
Model No: VFD60AMH43ANSAA
460V 3-Phase input, 30KW/40HP, 3-Phase output.
+ 18% GST applicable | Confirm before order
Delta MH300 30 kW (40 HP) Compact Vector Drive (three-phase 460 V)
The Delta MH300 is a high-performance compact vector-control AC drive engineered for demanding industrial duty in a footprint up to 71% smaller than the previous generation. This 30 kW (40 HP) model accepts a 3-Phase 380–480 V AC (-15% ~ +10%) supply and delivers a rated 60 A output under Heavy Duty (HD) and 69 A under Normal Duty (ND), built on a frame G chassis. It supports both induction (IM) and permanent-magnet (IPM/SPM) motors, making it a flexible single platform for a wide range of machines.
Key Features
- Dual motor support — drives induction (IM) and permanent-magnet (PM) motors from one unit.
- High starting torque — up to 200% torque at low speed (0.5 Hz sensorless / 0 Hz with PG feedback) for tough, dynamic loads.
- Built-in PLC (5K steps) for simple standalone logic and distributed control without an external controller.
- Integrated Safe Torque Off (STO) — ISO 13849-1 Cat 3 PL d, EN 61508 SIL 2, removing the need for external safety contactors.
- Built-in brake chopper and Deceleration Energy Control for fast, resistor-free braking on most frames.
- Screwless control terminals and a removable keypad with USB port for fast wiring, programming and offline parameter copy.
Motor Control & Performance
The MH300 offers V/F, sensorless vector (SVC) and field-oriented (FOC) control, with optional PG-feedback closed-loop modes for high-precision speed and torque regulation. Maximum output frequency is 599 Hz, and the drive holds a 1:1000 speed range in FOC+PG mode. Overload capability is 120%/60 s and 150%/3 s in Normal Duty, rising to 150%/60 s and 200%/3 s in Heavy Duty, so this 30 kW (40 HP) unit absorbs sudden load impacts without tripping. Deceleration Energy Backup (DEB) lets the motor decelerate safely on a power dip and resume speed when supply returns, protecting the machine.
Communication & Expandability
RS-485 Modbus and CANopen are built in as standard. Two option-card slots add fieldbus connectivity — PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, EtherCAT or PROFINET — plus PG feedback, analog/digital I/O, relay output or a 24 V external-power card for uninterrupted communication during a mains failure. Tension-control firmware (coil-diameter calculation, dual-PID, taper) is built in for winding and converting machinery.
Reliability & Easy Installation
Every board carries 100% conformal coating to IEC 60721-3-3 class 3C2 for moisture, corrosion and dust resistance, and IP40 variants suit high-dust textile and woodworking environments. The drive supports side-by-side (zero-clearance) installation at -20°C to 40°C, and this frame G unit is fan-cooled with a removable, easy-clean fan module. A built-in Class A (C2) EMC filter is available to save cabinet space and wiring time.
Buy the Delta MH300 30 kW (40 HP) in India
Industrial Supply Syndicate, Kolkata supplies the genuine Delta MH300 30 kW (40 HP) (three-phase 460 V) with GST invoice and pan-India delivery. Standard IP20, anti-dust IP40 and built-in-EMC variants are available — contact us for the configuration and best price for your application.
Why Buy from Industrial Supply Syndicate?
Proper tax invoice for every purchase. GST No: 19ACDPC1843J1ZR
Popular models available from our warehouse. Fast dispatch.
40% below list price. Competitive rates for bulk orders.
Application selection, parameter guidance, installation support.
Shipping to all states. 2–5 business days via courier.
Sourced through legitimate supply channels. Manufacturer warranty.
Buy Delta VFD60AMH43ANSAA in India
The Delta VFD60AMH43ANSAA is available from Industrial Supply Syndicate, Kolkata. Current price: ₹84,150 (excluding 18% GST). We accept orders via WhatsApp, phone, or email. GST invoice issued on all purchases.
Power Output
| Max. Applicable Motor | 30 kW (40 HP) |
|---|---|
| Rated Output Current (Heavy Duty) | 60 A |
| Rated Output Current (Normal Duty) | 69 A |
| Max. Output Frequency | 599 Hz |
| Carrier Frequency | 2–15 kHz (default 4 kHz) |
Input
| Rated Input Voltage / Freq. | 3-Phase 380–480 V AC (-15% ~ +10%), 50/60 Hz |
|---|---|
| Input Voltage Range | 323–528 V |
| Input Frequency Range | 47–63 Hz |
Control
| Control Methods | V/F, SVC, FOC, V/F+PG, FOC+PG, TQC+PG |
|---|---|
| Motor Types | Induction (IM) & Permanent Magnet (IPM/SPM) |
| Starting Torque | Up to 200% (0.5 Hz sensorless / 0 Hz with PG) |
| Speed Range | Up to 1:1000 (FOC+PG) |
| Overload (Normal Duty) | 120% / 60 s; 150% / 3 s |
| Overload (Heavy Duty) | 150% / 60 s; 200% / 3 s |
| Built-in PLC | Yes (5K steps) |
| Tension Control | Built-in (coil-diameter, dual-PID, taper) |
Communication
| Built-in | RS-485 Modbus & CANopen |
|---|---|
| Optional Fieldbus | PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, EtherCAT, PROFINET |
| Option Slots | 2 (PG / I/O / relay / comms / 24 V power) |
Safety & Build
| Safe Torque Off (STO) | Integrated — ISO 13849-1 PL d, EN 61508 SIL 2 |
|---|---|
| Brake Chopper | Built-in |
| DC Reactor | Optional (built-in on largest frames) |
| Conformal Coating | 100% PCB, IEC 60721-3-3 class 3C2 |
| Enclosure / IP Rating | IP20 standard; IP40 available (E-variant) |
| Built-in EMC Filter | Available (F-variant), Class A / C2 |
| Protection | Over-current, over-voltage, over-temp, phase-loss, overload, ground fault |
Physical
| Frame Size | Frame G |
|---|---|
| Dimensions W × H (mm) | 250 × 400 |
| Cooling Method | Fan cooling |
| Operating Temperature | -20 to +50°C (IP20); -20 to +40°C (IP40) |
| Keypad | Removable, with built-in USB port |
| Certifications | CE, RCM, REACH, RoHS, TUV, UL |
